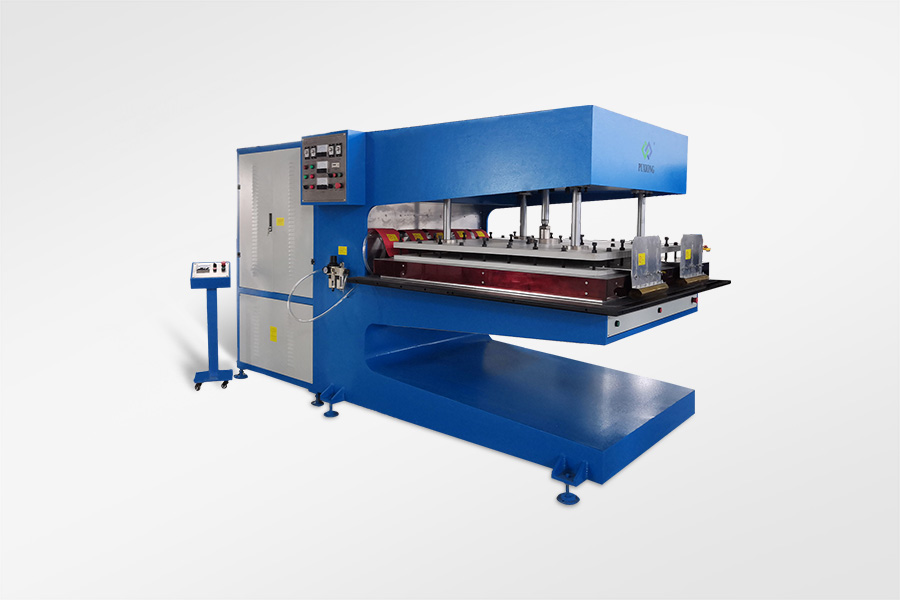

20KW HF Belt Welding Machine

Model: Con-E06M

  • PVC Conveyor Belt Welding machine
  • PVC Conveyor Belt Welder
  • PVC Cleat/sidewall welding Machine
  • Plastic conveyor belt welding machine
  • High Frequency Welding Machine for Sidewall
  • PVC Conveyor Belt Welding machine
  • PVC Conveyor Belt Welder
  • PVC Cleat/sidewall welding Machine
  • Plastic conveyor belt welding machine
  • High Frequency Welding Machine for Sidewall

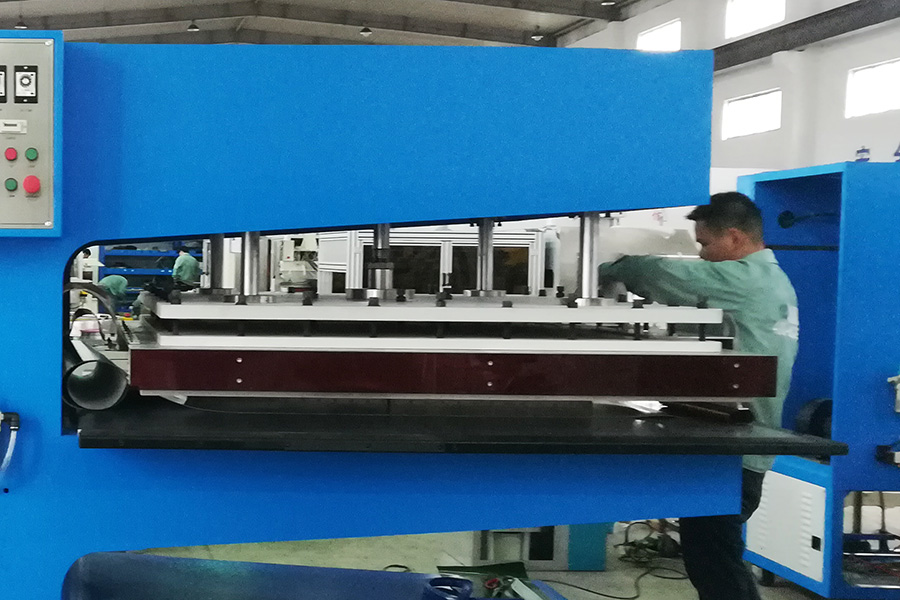

Large Top Electrode Plate (1500mm*1500mm) & Table (1800mm*1800mm)

Large Top Electrode Plate (1500mm*1500mm) & Table (1800mm*1800mm)

1- weld up to 1500mm/time
2- suitable for putting wider materials

So higher production capacity.

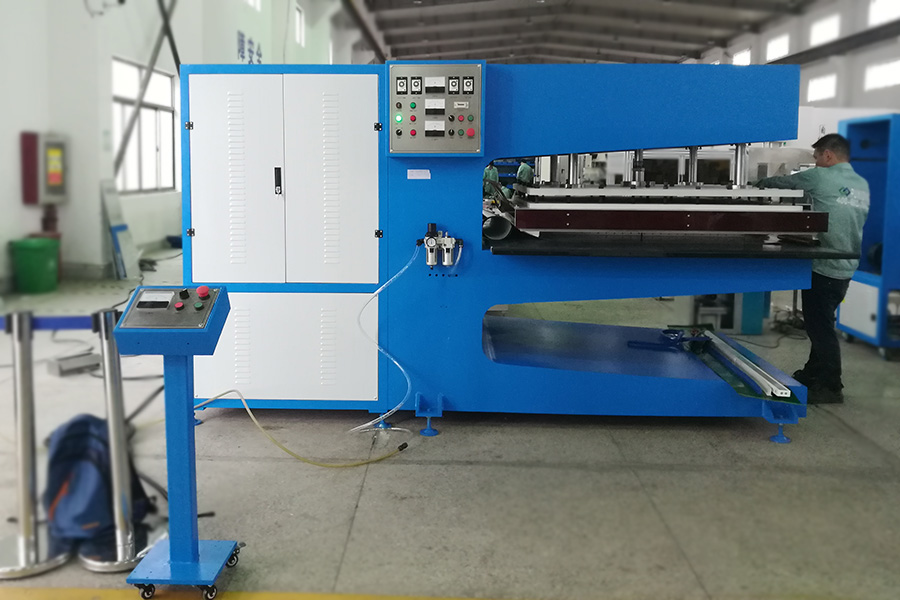

Long-distance Operating Desk

Long-distance Operating Desk

1- start far away from the machine
2- easy to operate at a long-distance place

So more safe and save labor.

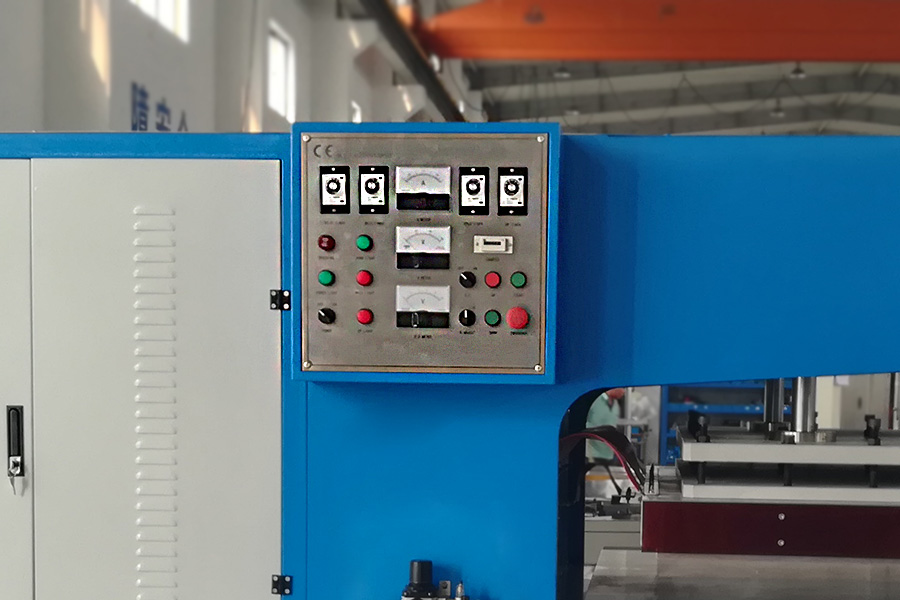

Mechanical or Button Control Type

Mechanical or Button Control Type

1- all main parameters are adjusted by buttons
2- simple and easy to operate

So less requirements to operator's technology, save labor costs accordingly.

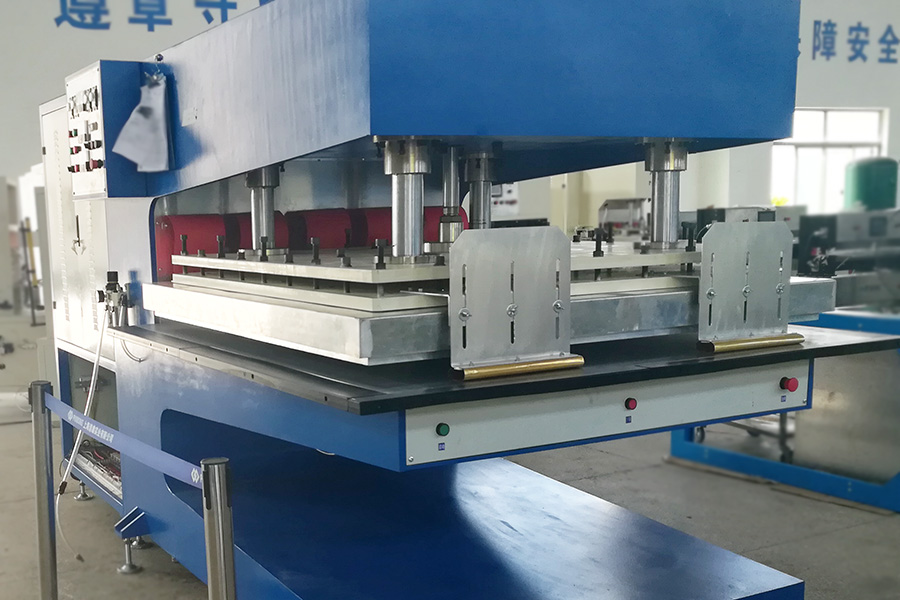

Square Design ( for top electrode and worktable )

Square Design ( for top electrode and worktable )

1- suitable for welding both pvc and pu belts
2- one machine for different materials with high capacity, like cleats, sidewall, guides, profiles, etc.

So less investment can meet different requirements, save investment costs for customers.
Parameters:

Model

Con-E06M

Power

20KW

Pressure Mode

Pneumatic ( 0.6Mpa )

Ossilation Frequency

27.12MHZ

Voltage

Customized

The Max.welding Length/Width

1500mm

Top Electrode

1500mm*1500mm

Bottom Worktable

1800mm*1800mm

Overall Dimension

L3650mm*W1960mm*H2180mm

Gross Weight

4500 KG
